This app was last updated on: Mar 09, 2017
TapNova doesn't recommend this app.
New in version 4.3.0

- New: 'Groups' and 'Events' for posting comments and pictures to PARTcommunity
- New: Table position changed to right side as default and can now be changed in settings
- New: node for ordering preferred catalogs added to index browsing and search results
- New: Dropdown menu for default viewtype for webviewer3d in settings (options: standard, dreamoc modes, VR, AR)
- New: CubeSketcher reworked
- New: Adjustable transparence for 3D View
- New: Geometric Search 3D with files (STL, STEP)
- Fixed: Improved rendering performance in 3D View
- Fixed: Remove CAD Format selection from settings, select when email/download cad

Description

The PARTcommunity 3D CAD models app is a download service for 3D CAD data by CADENAS.

This app provides engineers and purchasers in the mechanical engineering, automotive and building industry direct access to thousands of parts from more than 400 certified catalogs of leading global manufacturers.

The 3D CAD models are compliant with major world standards and are suitable for use in current CAD systems, such as: CATIA®, Autodesk® Inventor®, SolidWorks®, Creo™ Parametric, NX™, AutoCAD®, Solid Edge®, etc.

Benefits of the 3D CAD models app:

- Download of 2D and 3D CAD models completely free of charge
- CAD models can be easily configured by the user
- All CAD models are certified from the suppliers
- All current CAD formats available

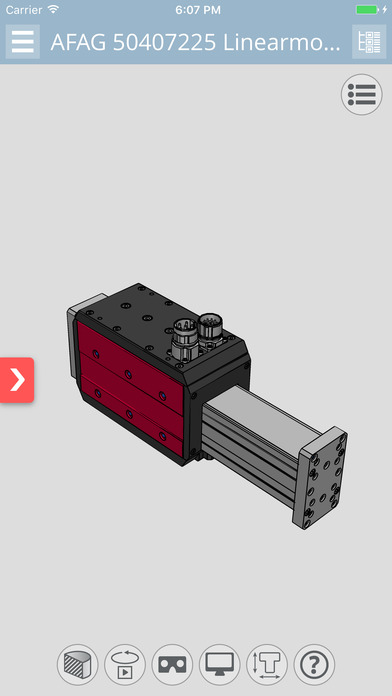

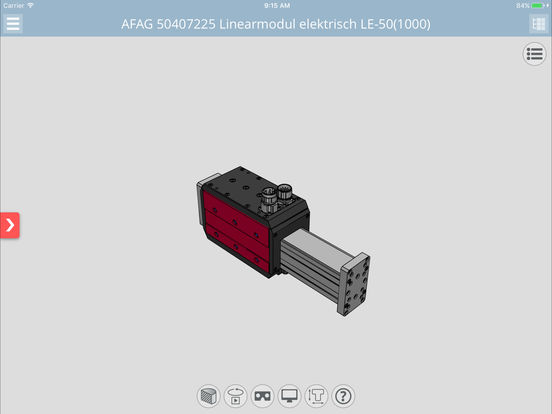

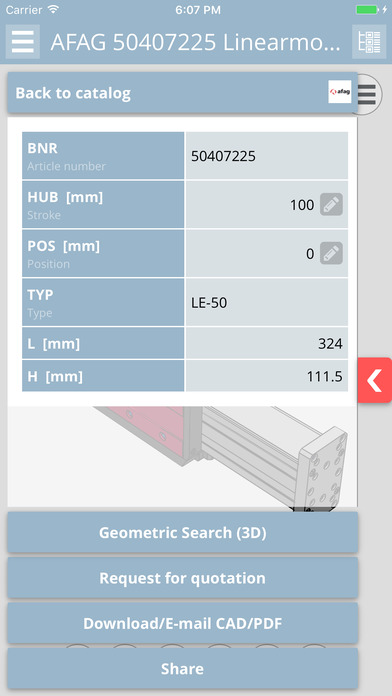

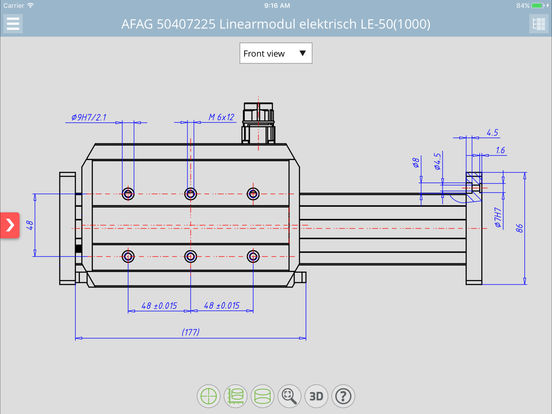

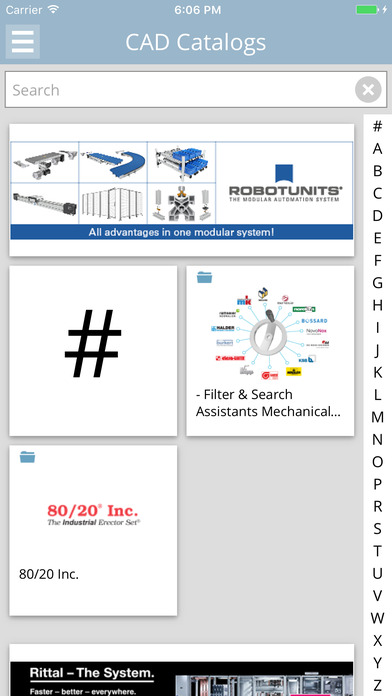

iPad Screenshots
Reviews
Great 3D viewer
haroldsjs on 5/22/2017
Great app for viewing 3D models on the go!
exellent
amir moharami on 4/24/2017
very usefull
Excellent resource!
ASwarty on 4/15/2017
Very handy resource for design visualization and verification!
Great tool
TWPayne on 2/13/2017
This is a great aid in design and layout work. But is sometimes difficult to find the part you are looking for. But models are good enough for all but finest detail level work.
BEST CAD App
KEla8 on 9/8/2016
This is by far the best FREE CAD app out there with all the NATIVE CAD models you could ever need...this is a must have app for any sales person that works for these companies. Also great for any Design Engineer working mobile...email all the CAD models you need so they are ready when you get to your station! Awesome!
Neato
friscopa on 6/20/2016
It's cool, I just printed 2 cool toys at my library.
Very useful
broseph on 1/7/2016
Great tool for part comparison and quick access. Very handy. Just keep adding catalogs
Santiago2986
Santiago2986 on 12/3/2015
Excelente aplicación
Works great!
Stikfingger on 10/23/2015
Thanks for the great app
The Future
MegaMindTheMovie on 10/19/2014
Is there anyway to add a request for other manufacturers? Any way to add tools needed to perform work? Steps to disassemble? Augmented reality overlay using point data by incorporating draw function for items you can not find QR codes. These get destroyed in the field. Will there be a way to add for manufacturers that offer models per their website or setup links to them like SPX? Outstanding first step. Need to add a How To use section and/or menu option.
Great
Jake_Holandiner on 9/19/2014
This is an awesome resource!
ME
Klthmpsn1 on 8/25/2014
Great app- use to verify misumi pin orders on the floor.
Excelente
Nemesis voyka on 8/25/2014
No había visto un catálogo tan presiso en la geometría y utilidad como este, para mi es una muy buena app
Meh
"John Smith" on 5/9/2014
You cannot create your own CAD models on it. It would be a better app if this was possible.
So great, thanks!
accordsun on 10/4/2013
really helpful, you may find almost everything you want. if the specifications were imported, that will be perfect!
Great app...but....
Alfie262 on 7/17/2012
I love this app...I am a student and this tool is so incredibly helpful....but unfortunately when I go to use the "DME" mold base catalog..."US" version....it crashes....this stinks...as most of my Fall 2012 and Spring 2013 semesters "DME" is most important. If this error is fixed....you will make my year! Please look into this issue! Update....still no update.....crashes constantly! Please fix this app! It could be great but.....no updates!
WOW
Mike aka -GOD- on 6/1/2012
So much in a free app... Blew my mind Although I think it could come with a handbook to make using it a little easier... I like how it has the parts but I think it would be nice if it had something like a free pad to draw your ideas like a frame building for example.
:)
ImportRacer1 on 6/1/2012
Very useful app like it a lot!
Good one
Reza badpa on 5/24/2012
Weri good
